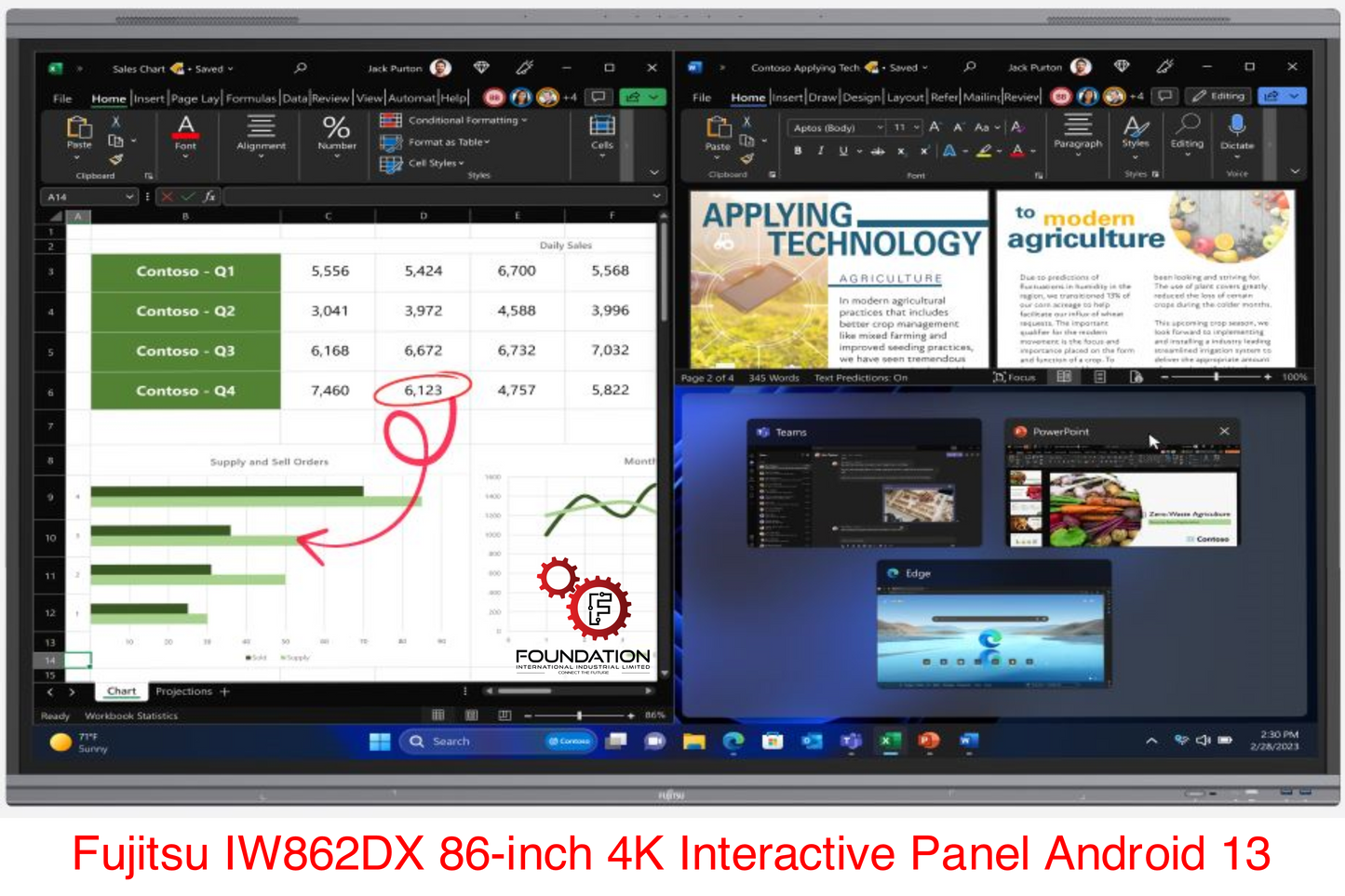

Fujitsu IW862 DX 86-inch 4K UHD Interactive Panel Smart Board

HK$32,800.00
 per
Combinlation

Product description

Technical Details



Product Name IW652 DX IW752 DX IW862 DX
Picture Performance
Panel and backlit DLED
Screen Surface Treatment AG tempered glass Mohs level 7
Contrast – typical 55”,65”: 1200:1 // 75”: 1100:1 // 86”: 1200:1
Viewing angle (h/v) - typical 178o
Color performance 1.07 Billion Colors
Brightness – typical 350 cd/m2(Typ)
Size and Resolution
Aspect ratio 16:9
Resolution (native) 3840(H) x 2160(V)
Picture Size (H x V) 55”: 1209.6×680.4mm // 65”: 1428.48mm×803.52mm // 75”: 1649.664×927.936mm // 86”: 1895.04×1065.96mm
Pixel Pitch 55”: 0.315mm // 65”: 0.372mm // 75”: 0.4296mm // 86”: 0.4935mm
Response Time 8ms(Typ)
Refreshing Frequency 60Hz
Connectivity
VGA/D-SUB 1 x D-SUB
DVI N/A
DP N/A
HDMI 1 × HDMI OUT (4K), 3 × HDMI IN (HDMI2.0)
USB 3 x USB 2.0 (including 2 USB ports in front)
3 x USB 3.0
Audio In 1 x 3.5 mm stereo phone jack
Audio output 1 × Audio out
Built-in Speaker Yes, 2 × 12 W
RS232 Control 1 x RS232
LAN 1 × GIGABIT LAN (RJ45)
TOUCH OUT 2 x TOUCH OUT
SPDIF 1 x SPDIF
Built-in Wi-Fi Yes, dual band
Bluetooth Supports
Touch System
Sensing Type Infrared recognition
Touch point 10 points writing and 20 points touch
Writing Response single-touch ≥6mm and multi-touch ≥8mm
Touch Tool Finger, Finger cover by glove, Opaque objects
Response Time <10ms
Accuracy ±1.5mm(over 90% Area)
Communication Mode Full-speed USB (driver free)
Surface Hardness Toughened Glass with Level 7 of Mohs Standard
Wireless Screen Mirroring
Wireless Screen Mirroring Supports
Self-Hotspot Screen Mirroring Supports
Reversely control Windows / MacOS Supports, client software required
AirPlay protocol Supports
Chromecast protocol Supports
Power consumption (Typical)
Soft switch off ≤0.5W
Overall Power(nominal power) 55”: 300W // 65”: 350W // 75”: 350W // 86”:550W
Electrical values
Rated voltage range 100 V – 240 V
Rated frequency range 50 Hz – 60 Hz
Protection class 1
Quality and Reliability
MTBF (demonstrated) 50,000h
Dimensions / Weight / Environmental
Key Location & Number Front physical keys, 1
Dimension (L x H x D) 55”: 1269×773×86mm // 65”: 1489×897×86mm // 75”: 1710×1020×86mm // 86”: 1957.2×1160×86mm
Dimension(package) LxWxH 55”: 1428×220×878mm // 65”: 1656×204×1050mm // 75”: 1860×280×1170mm // 86”: 2211×280×1370mm
Net Weight 55”: 26.75kg // 65”: 40.2kg // 75”: 51.75kg // 86”: 64.65kg
Gross Weight 55”: 34.35kg // 65”: 51.3kg // 75”: 70.35kg // 86”: 95.55kg
Thickness of machine and wall mount 55”, 65”, 75”, 86”: 116mm(9060G)
Wall-hanging Screw Spec M8×25mm
VESA 55”: 400×200mm // 65”: 600×400mm // 75”: 800×400mm // 86”: 800×600mm
Miscellaneous
Color Black
USB Key Panel Lock Supports
Magnetic Pen Holder Yes
Scheduled power up / shutdown Supports
Accessories
AC Power Cable British Standard Power Cord (3 meters), EU Power Cord (3 meters)
USB Cable 5 meters
VGA Cable 5 meters
HDMI Cable 3 meters
Audio Cable 5 meters
Writing Pen 2
Remote Control 1
Operation Instruction 1
Order information
Order Code 55”: HLIWB0009A-01 // 65”: HLIWB0010A-01// 75”: HLIWB0011A-01 // 86”: HLIWB0012A-01
EAN Code 55”: 8888551288564 // 65”: 8888551288571// 75”: 8888551288588 // 86”: 8888551288595
