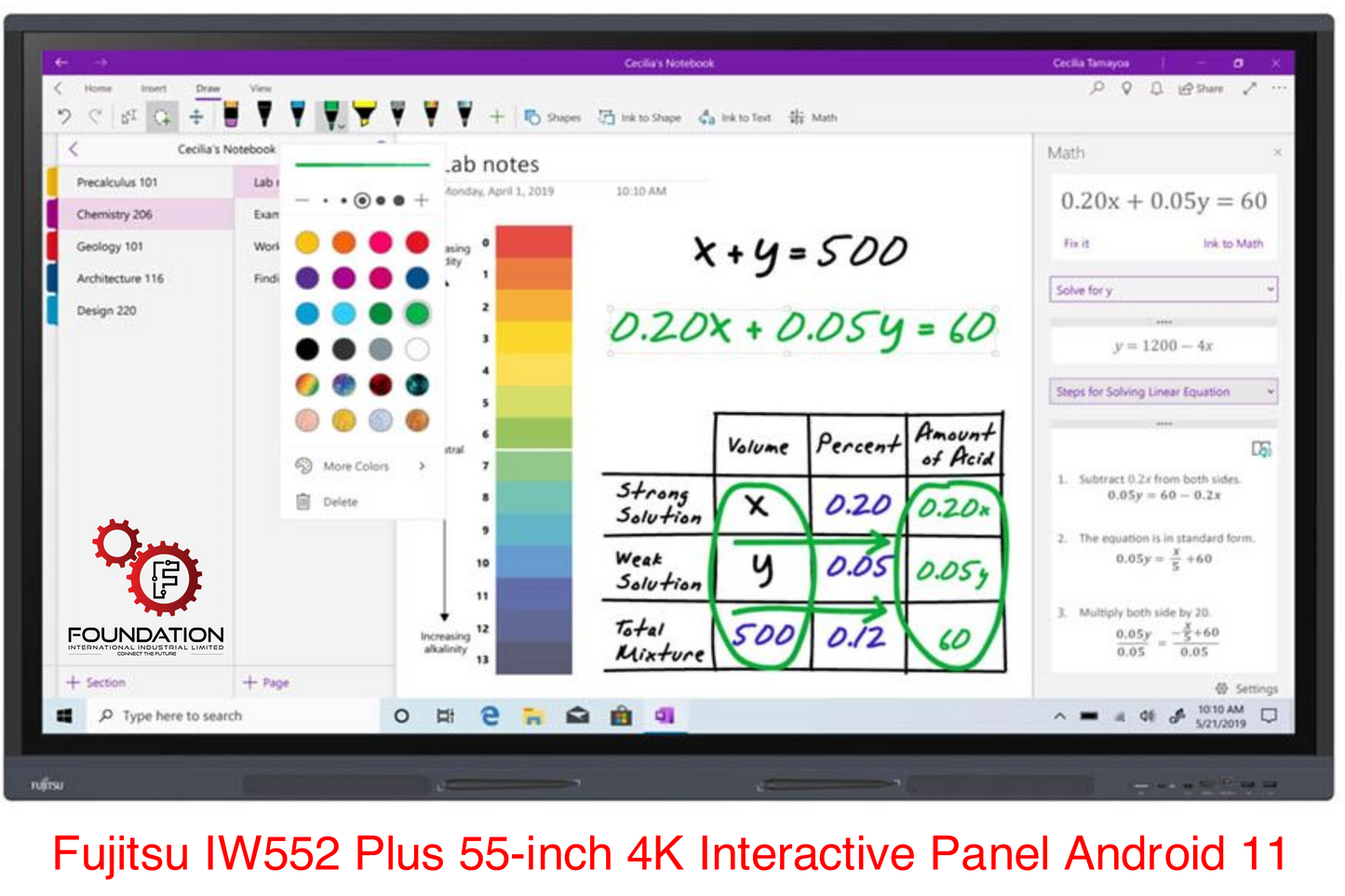

Fujitsu IW552 Plus 55-inch 4K UHD Interactive Panel Smart Whiteboard
HK$15,800.00
Technical Details
| Product Name | Interactive Panel IW552 Plus |
|---|---|
| Picture Performance | |
| Panel backlit | DLED |
| Screen surface treatment | AG tempered glass Mohs level 7 |
| Contrast – typical | 1,200:1 |
| Viewing angle (h/v) - typical | 178° |
| Color performance | 1.07 billion colors |
| Brightness – typical | 350 cd/m² (Typ) |
| Flicker-free technology | Supports |
| Low blue light | Supports |
| Anti-glare filter | Supports |
| Built-in ambient light sensor | Yes |
| Size and Resolution | |
| Aspect ratio | 16:09 |
| Resolution (native) | 3,840 (H) x 2,160 (V) |
| Picture Size (H x V) | 1,209.6 x 680.4 mm |
| Pixel Pitch | 0.315 mm |
| Response Time | 8 ms (Typ) |
| Refreshing Frequency | 60 Hz |
| Connectivity | |
| VGA/D-SUB | 1 x D-SUB |
| HDMI | 1 x HDMI OUT (4K), 3 x HDMI IN (HDMI 2.0) |
| USB | 1 x USB 2.0 4 x USB 3.0 (including 2 USB ports in front) |
| USB Type-C™ | 1 x USB Type-C™ |
| Audio in | 1 x 3.5 mm stereo phone jack |
| Audio output | 1 x Audio out |
| RS232 control | 1 x RS232 |
| Built-in speaker | Yes, 2 x 12 W |
| LAN IN | 1 x GIGABIT LAN (RJ45) |
| LAN OUT | 1 x GIGABIT LAN (RJ45) |
| TOUCH OUT | 2 x TOUCH OUT (USB 2.0) |
| SPDIF | 1 x SPDIF |
| WiFi | Yes, dual band, supports WiFi 6 |
| Touch System | |
| Sensing type | Infrared recognition |
| Touch point | 20 points touches, 10 points writing |
| Minimum object size | 3 mm |
| Writing height | ≤3 mm |
| Writing double colors with double pens simultaneously | Supports |
| Touch tool | Finger / Passive infrared pen / Active infrared pen |
| Response time | ≤10 ms |
| Accuracy | ±1.5 mm (over 90% area) |
| Communication mode | Full-speed USB (driver free) |
| Wireless Screen Mirroring | |
| Wireless Screen Mirroring | Supports |
| PIN code connection mode | Supports both static and dynamic pin codes |
| Maximum number of split screens / devices projecting to the Panel simultaneously (Panel standalone Android mode) | 9 |
| Self-hotspot Screen Mirroring | Supports |
| Native AirPlay protocol for Screen Mirroring | Supports |
| Native Chromecast protocol for Screen Mirroring | Supports |
| Native Miracast protocol for Screen Mirroring | Supports |
| Mirroring of Panel display to client devices | Supports |
| Reversely control Windows / MacOS during Screen Mirroring | Supports, client software required |
| Multi-Panels synchronization | Supports |
| Built-in moderator console | Yes |
| Power consumption (Typical) | |
| Soft switch off | ≤0.5 W |
| Overall power (max power) | 350 W |
| Electrical values | |
| Rated voltage range | 100 V – 240 V |
| Rated frequency range | 3.5 A |
| Quality and Reliability | |
| MTBF | 50,000 h |
| System | |
| CPU (Central Processing Unit) | Quad core A55 x 4 |
| GPU (Graphics Processing Unit) | Quad core Mali G52 |
| System memory | 4 GB |
| Storage | 32 GB |
| OS | Android 11 |
| Dimensions / Weight / Environmental | |
| Key location & number | Front physical keys, 1 |
| Dimension L x H x D | 1,271 x 774 x 87 mm |
| Dimension(package) L x W x H | 1,401 x 220 x 859 mm |
| Net weight | 26.1 kg |
| Gross weight | 34.45 kg |
| Thickness of machine and wall mount | 117 mm (9,060 G) |
| Wall-hanging screw spec | M8 x 25 mm |
| VESA | 400 x 200 mm |
